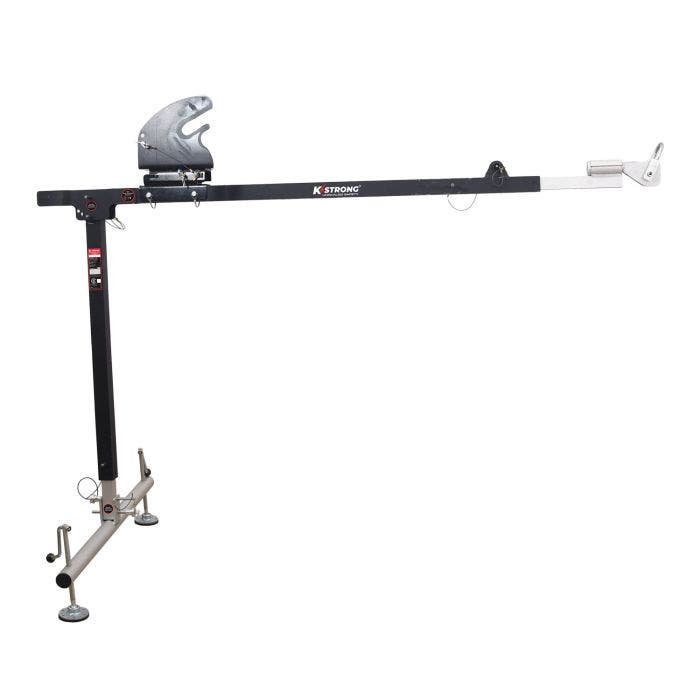

[FP-UFT551080] Side Entry Davit Assembly with Retrieval Device Bracket (High Strength Aluminum Alloy)

DESIGN:
Ideal choice for access of confined space with help of Winches / Retrieval units, where regular anchorage system could not be used due to limited height constrained.
Three adjustment points make it versatile to be used in various locations where anchor is at low level.
Swivel eye at the end of cantilever to be attached to rated anchor point.
Base with swivel pads for making the system level with the ground.
Comes with preinstalled mounting brackets which are compatible with KStrong winches or retrieval blocks.
It can be use for side gantry holes of confined space.
Can also be used in both vertical & horizontal confined space entries.
PHYSICAL PARAMETERS:
Body made up of high strength Aluminum Alloy
MAXIMUM LOAD CAPACITY:
1102 lbs. (500kgs)
FINISH:
Powder Coated in dual color – Black & Grey
WEIGHT:
28.63 lbs. ± 0.22 lbs. (12.99kgs ± 0.10kgs)
SYSTEM STRENGTH:
15 kN

Brand: KStrong
