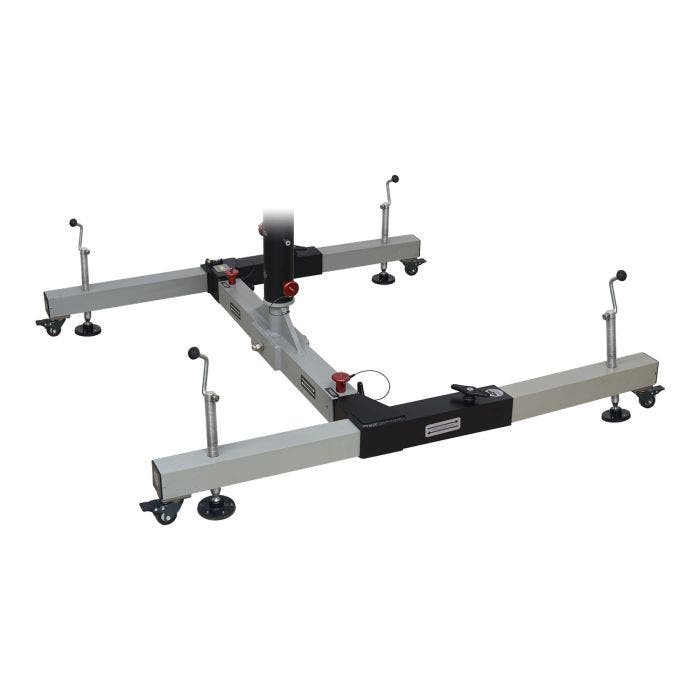

[FP-UFT555001] Megadavit™ H-Base Frame Assembly (High Strength Aluminum Alloy)

DESIGN:
H-Base assembly provides a safe and secure system for easy access to Confined space by making complete system with Lower mast & Upper offset mast (BOOM).
Comes with inbuilt swivel feature, Lower mast assembly can be rotated even under load up to 360° by removing the locking pins provided to lock Lower mast & H-Base.
A mini sprit leveler is attached in base assembly for proper leveling of Davit Legs height can also be adjusted to make the davit balanced at time of installation.
Wheels are provide at bottom for easy movement of Davit system after assembly.
OPENING OF H BASE:
Minimum Opening Ø43.3 in. (1100mm) & Maximum Opening Ø59.44 in. (1500mm)
MATERIAL:
Aluminum alloy
FINISH:
ED coated grey.
SYSTEM STRENGTH:
15 kN (3300 lbs).
WEIGHT:
71.82 lbs ± 0.44 lbs (32.57 kgs ± 0.20 kgs).

Brand: KStrong
