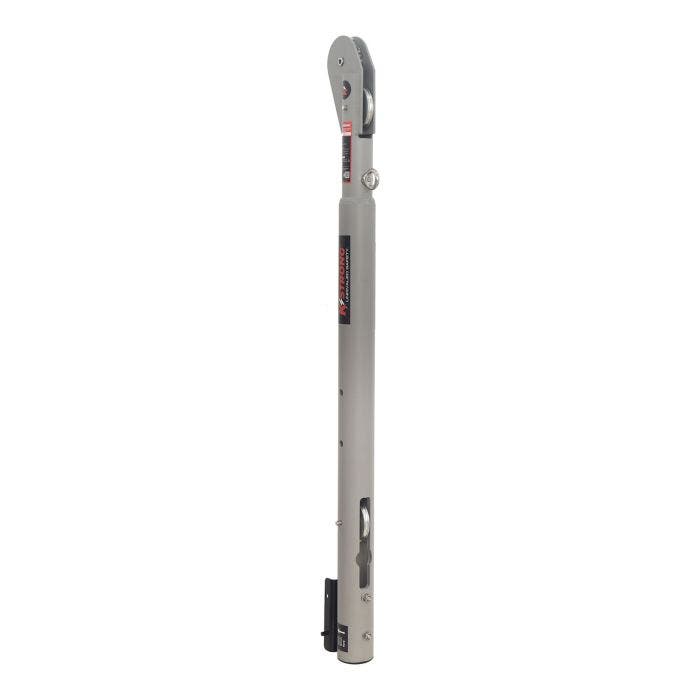

[FP-UFT556001] Megadavit™ 3 ft. Cantilever Boom Arm with Winch Bracket (High Strength Aluminum Alloy)

DESIGN:
Upper offset mast (BOOM) is designed to be fixed upon lower mast assembly to make complete davit system for confined space entry.
Upper offset mast can be used with lower mast of all models of KStrong® Megadavit™ system (i.e. H-base mounting, wall/floor mounted, hitch mounting davit/concrete flush mounted davits)
Comes with pre-installed mounting bracket which is compatible to mount KStrong winches
Comes with pulleys, which are used for smooth movement of rope / wire used for lowering / lifting or rescue
Additional eye nut is provide to use as an anchorage point in case of rescue
MATERIAL:
Mast arm & big pulley: Aluminum alloy
Small pulley & eye nut: Stainless steel
Mounting bracket: Alloy steel
FINISH:
Mast arm & big pulley: ED coated grey
Small pulley & eye nut: Polished
Mounting bracket: ED coated black
SYSTEM STRENGTH:
Housing: Stainless steel
Sleeve: PTFE
WEIGHT:
27.51 lbs. ± 0.44 lbs. (12.47kgs ± 0.20kgs)
RELEVANT STANDARDS:
Conforms to EN 795:2012 Type A

Brand: KStrong
